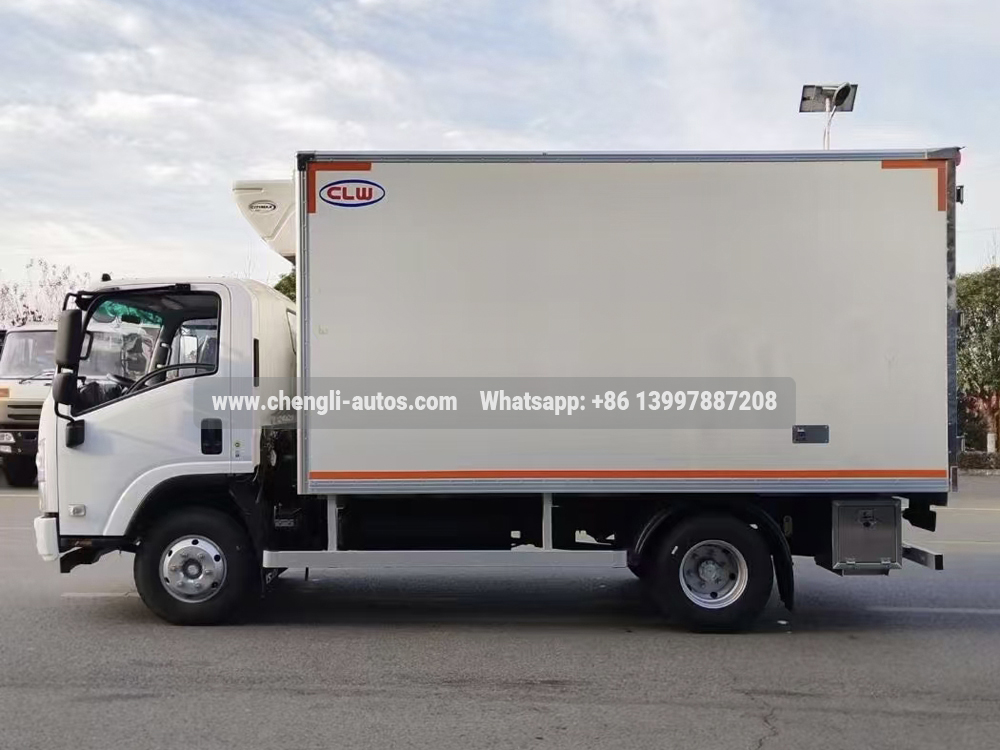

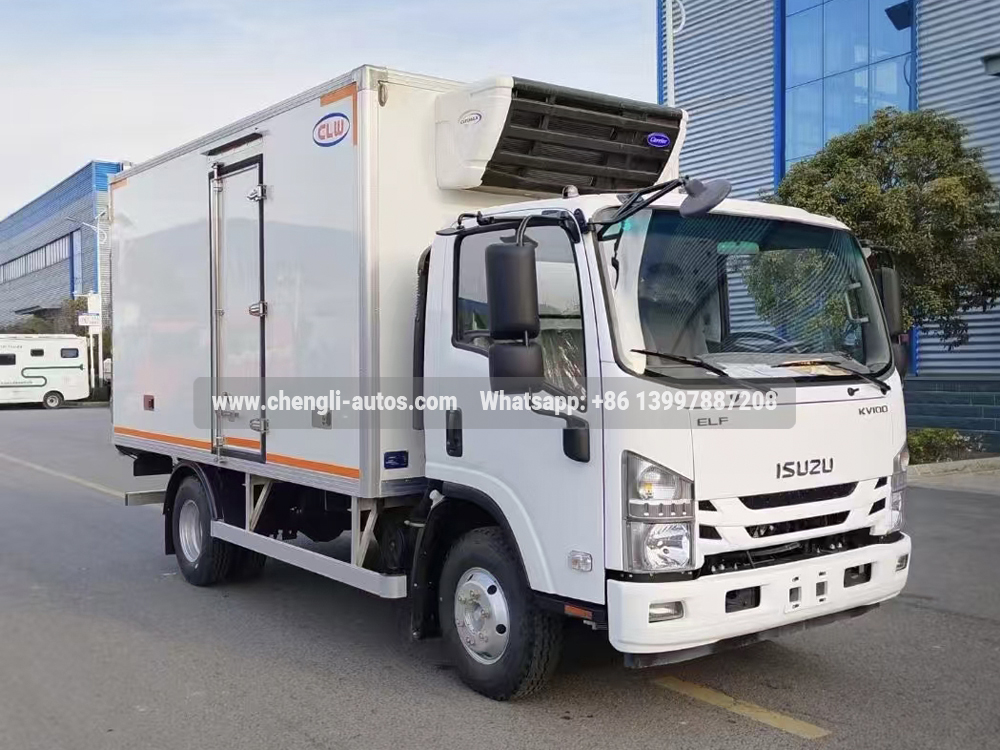

ISUZU KV100 ELF Refrigerator van truck, 4x2 LHD chassis, Isuzu 120hp diesel engine, 5-shift manual gearbox, 5T cooling van box, 8mm XPS extruded polystyrene board, Thermo King or Carrier brand refrigerator unit for operation, Min. temperature can reach to -18°, to meets different customers' demands.
Drive form:
4x2Engine model:
4KH1CN6LB, 120HP, EURO 6Min. order quantity:
1 unitDelivery time:
20 days after we received the depositShipping :
40Shipping port:
Any main port in ChinaISUZU KV100 Refrigerated van truck 5 tons
Application:
5T ISUZU KV100 Refrigerator van truck (also called Refrigerated truck, freezer van truck, frozen vehicle, freezer box truck, refrigerator cooling truck), which is a type of vehicle used to transport perishable goods at a specific temperature range to prevent spoilage. Freezer trucks are equipped with refrigeration units that can maintain cold temperatures.
Refrigerated trucks are commonly used to transport food items such as fruits, vegetables, dairy products, meat, seafood and ice cream.
Product Features:
---- Refrigeration unit brand is optional.
---- We can supply freezer van trucks with capacity from 2Tons to 25Tons. And the length of freezer body from 2.8m to 9.6m for choosing.
ISUZU KV100 Freezer Box Truck (5 Ton) | ||
General | Vehicle Brand | CLW TRUCK |
Chassis Brand | ISUZU | |
Overall Dimension | 5900* 2270 * 3200 mm | |
GVW / Kerb Weight | 8,500kg / 3,500kg | |
Cab | Cab Capacity | 3 persons allowed |
Air Conditioner | Heating/cooling air conditioner | |
Engine | Fuel Type | Diesel |
Engine Brand | ISUZU | |
Power | 120HP (88kw) | |
Displacement | 2999 ml | |
Emission Standard | Euro 6 | |
Chassis | Drive Type | 4X2 (left hand drive) |
Transmission | ISUZU 5 Forward gear + 1 Reverse,manual | |
Wheelbase/No. of axle | 3360mm / 2 | |
Tire Specification | 7.00R16 12 PR,6+1 | |
Tire Number | 6 tires and 1 spare tire | |
Max Speed | 105 km/h | |
Paint | Metallic paint | |

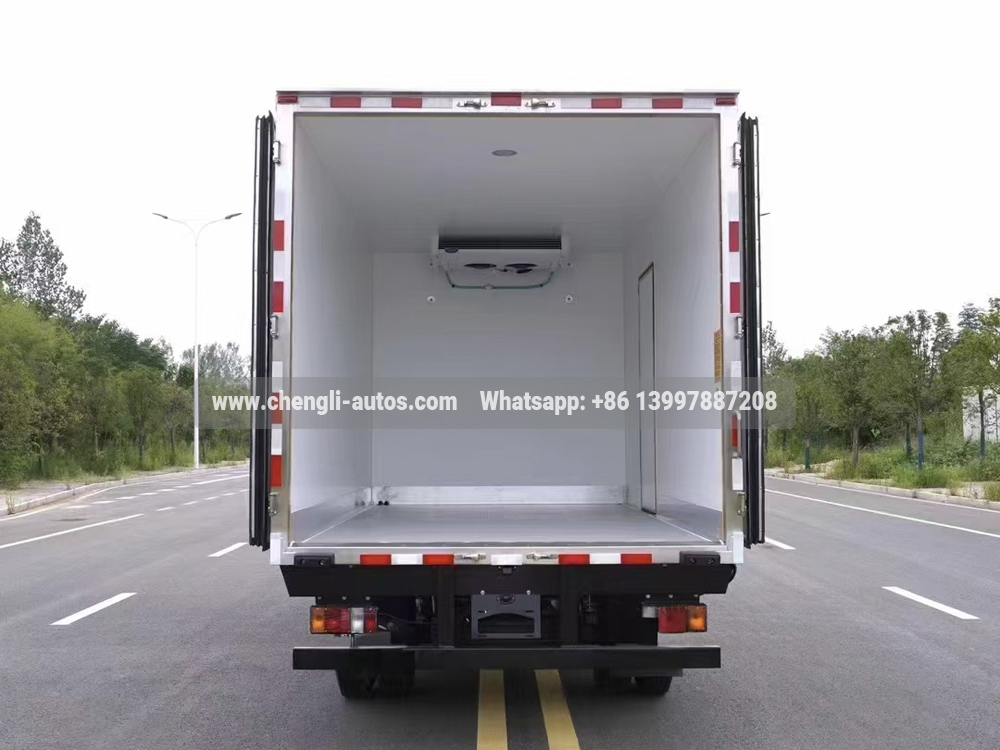

Superstructure | Body size | 4050×2100×1900(mm) |
Load Capacity | 5 Tons | |
Van material(inner/outer) | Glass steel / glass steel | |
Insulation layer | 8mm XPS extruded polystyrene board | |
Inside floor | Aluminum checkered plates | |
Refrigerator unit brand | Domestic brand (American Thermo King or Carrier brand is optional) | |
Lowest temperature | Min. temperature can reach to -18° | |
Doors | Rear double-open doors | |
Lights & Switch | Led, Water-proof, 12V/24V convertible | |
Optional | 1. Rear hydraulic lifting plate, easy to load and unload goods. | |
2. Side doors, side steps and ladders. | ||
3. Different temperature area control. | ||
4. Rear vision csmera. | ||
5. Meat hook, ventilation duct to meets different customers' demands | ||
