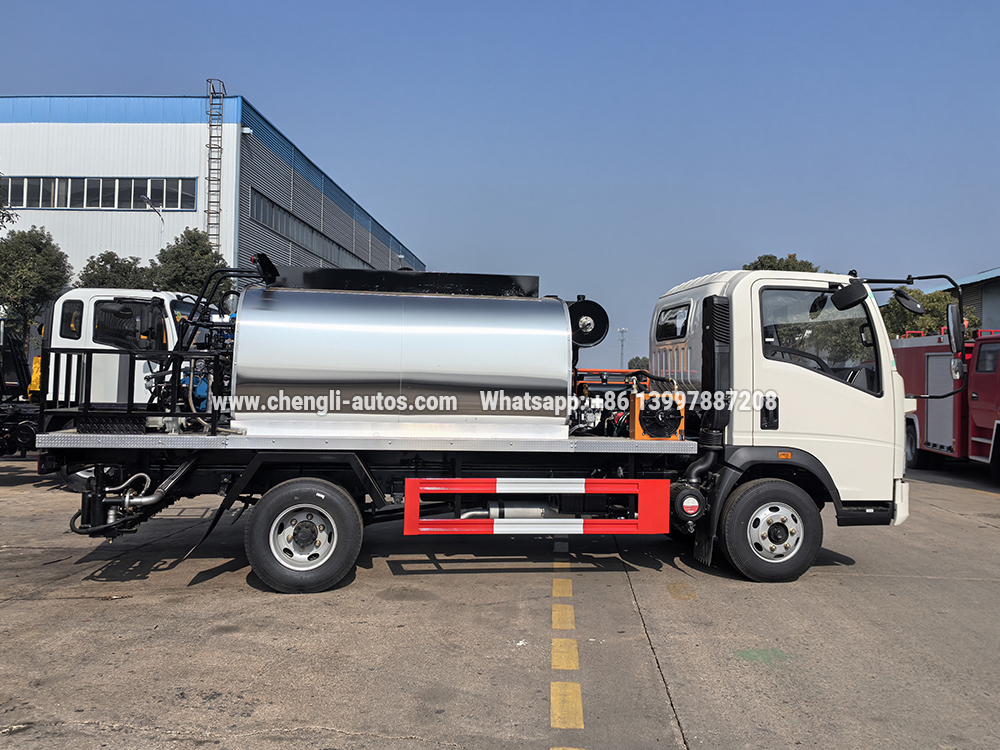

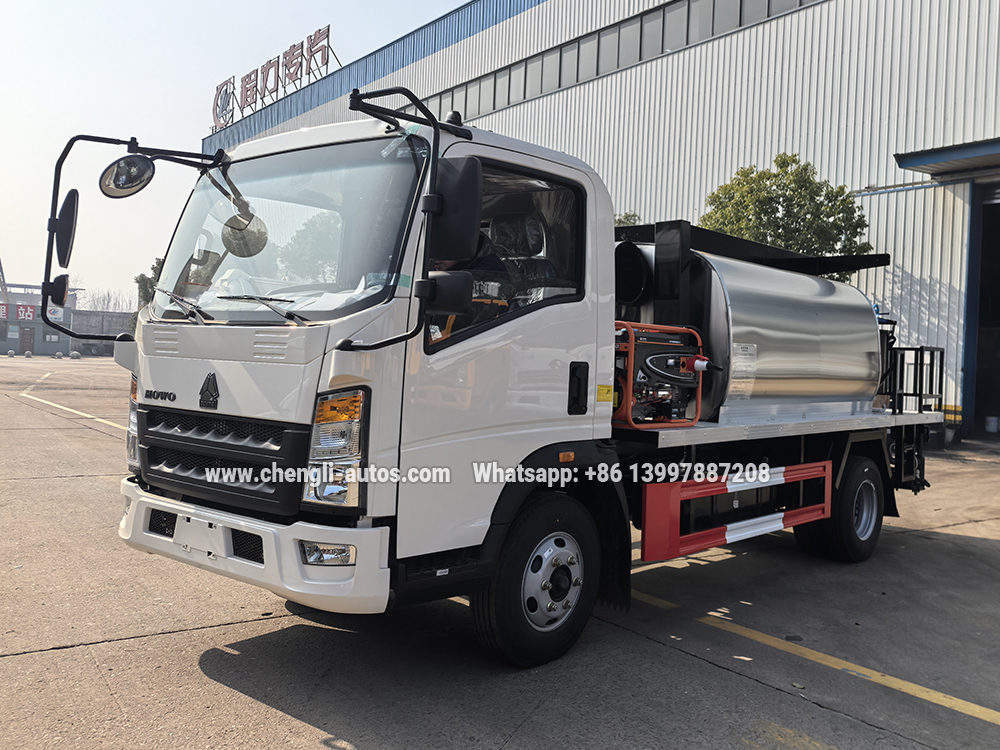

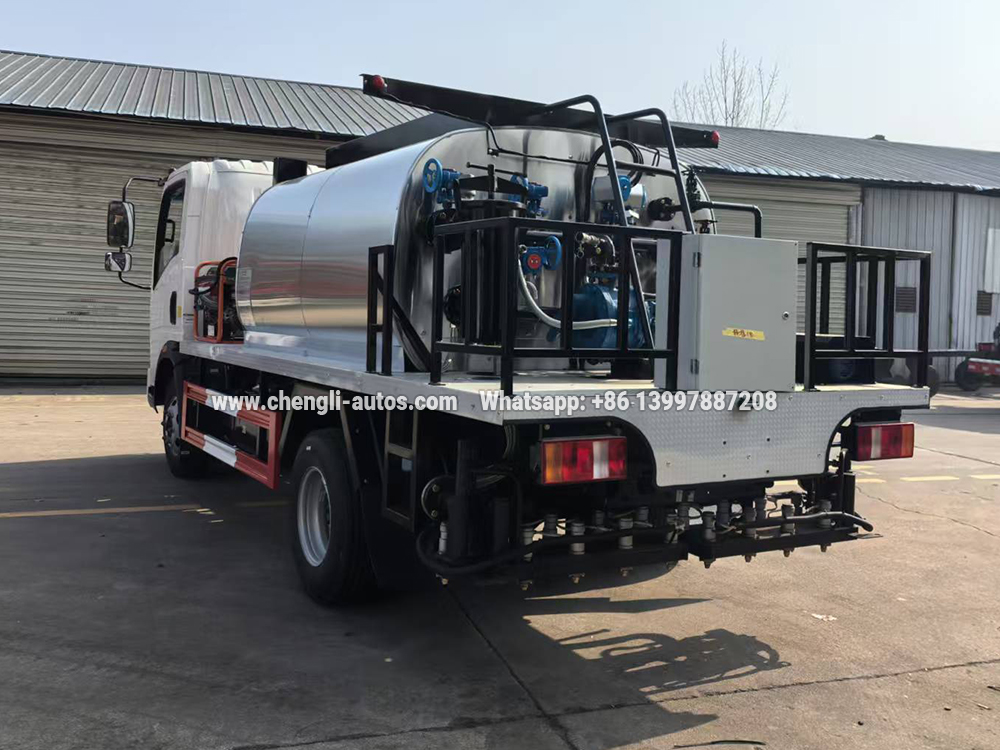

Sinotruk Howo Asphalt Distrbutor Truck (4,000L~5,000L)

Howo 4 tons Asphalt distributor truck, Howo 4x2 chassis, YN4102QBZL 116hp diesel engine,  5-shift manual gearbox, 7. 00R16 14PR stainless tire, asphalt tank 4,000L~5,000L, asphalt pump QGB450, max  spring width 4.5m,  spraying nozzle 48 pieces, Hydraulic motor 05-110-BD31, Bitumen pump QGB270L, Proportional valve WG-231105-00, Control system PLC control, Sparying medium Hot emulsified asphalt (including hot/Modified/Cutback/Emulsified/Rubber Asphalt)

  • Asphalt tank capacity:

    9000 Liters
  • Spray Material:

    Hot/Modified/Cutback/Emulsified/Rubber Asphalt
  • Spray Width / Nozzles:

    Max 4 m / 18 Nozzles
  • Hydraulic pump:

    CBQ550-L
  • Bitimen pump:

    QGB950, flow rate:950 L/min
  • Gasoline Engine Power:

    5.5 kW
  • Control Mode:

    Manual, one-control-one
  • Heating Method:

    Self-heating via thermal oil

HOWO 4X2 Asphalt distratutor truck (4,000 L~5,000L)


Application:

Howo asphalt distributor truck, (also called Truck Mounted Asphalt Sprayer, Bitumen Asphalt Distributor Spraying Truck,  Road Paving Machinery, Spraying Bitumen Distributor Truck, road maintenance truck)  asphalt spraying truck is a professional road maintenance vehicle designed for precise and efficient application of bitumen in various construction environments. It is widely used for surface dressing, tack coat, and prime coat applications on highways, urban roads, rural routes, and airport runways.


Product Features:

---- HOWO chassis ensures perfect performance on driving.
---- Weichai engine, super powerful, no overhaul within 100,000 km.
---- High strength cargo body, nice shape and rational structure.
---- Easy operation and easy maintenance.

---- It can be customized according to customer requirements

HOWO Asphalt Distributor truck (4,000 L~5,000 L)

General

Vehicle Brand

CLW

Chassis Brand

HOWO

Overall Dimension

5990×2200×2300 mm

GVW / Kerb Weight

6,500 kg / 3,900 kg

Cab

Cab Capacity

3 persons allowed

Air Conditioner

With air conditioner

Engine

Fuel Type

Diesel

Engine Brand

YUNNEI

Power

YN4102QBZL (116 hp)

Displacement

3760 CC

Emission Standard

Euro II

Chassis

Drive Type

4X2, left hand drive

Transmission

Manual,5-forward gears & 1 reverse

Wheelbase/No. of axle

3360 mm / 2

Tyre Specification

7. 00R16 14PR

Tyre Number

6 tyres and 1 spare tyre

Max Speed

90 km/h

Paint

Metallic paint

Superstructure

Tank interior

Carbon steel

Insulation material

50 mm rock wool insulation

Tank exterior

1mm stainless steel

Hydraulic motor

05-110-BD31

Hydraulic pump

CBQ540-L

Bitumen pump

QGB270L, flow rate:270 L/min

Proportional valve

WG-231105-00

Asphalt nozzles

18 pcs intelligent nozzles (one control one)

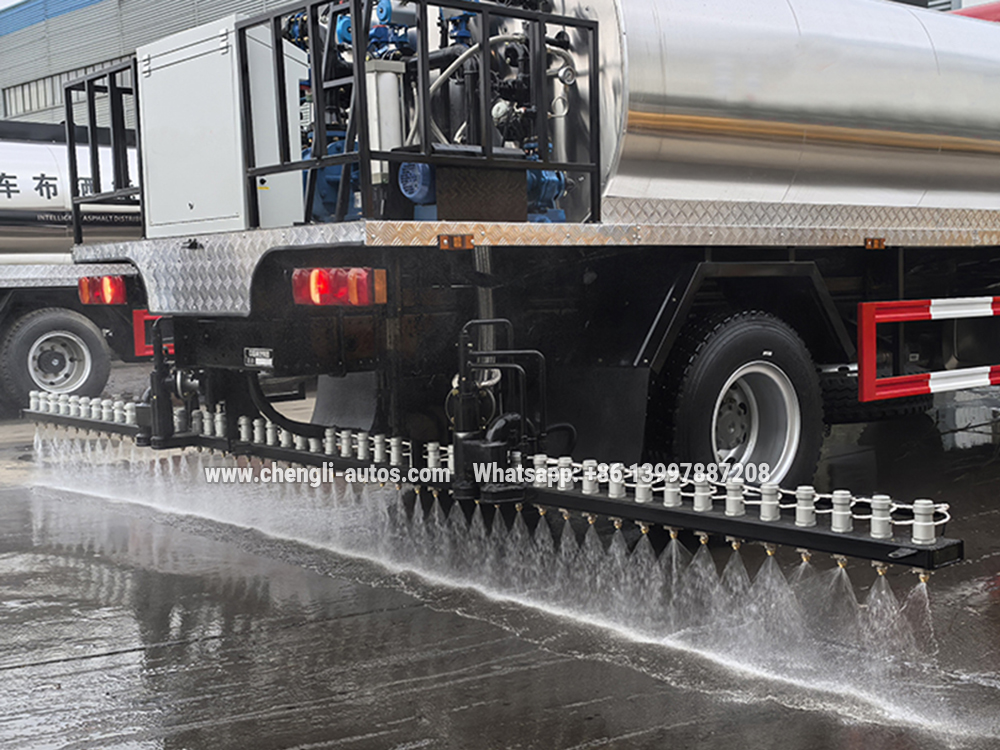

Spray width

4 meters

Burner

RIELLO G10(Italy), 100,000 kcal/h each

Control system

Cab operation button control or rear working platform control

Sparying medium

Emulsified asphalt, modified emulsified asphalt, etc

Sinotruk Howo Asphalt Distrbutor Truck (4,000L~5,000L)
Sinotruk Howo Asphalt Distrbutor Truck (4,000L~5,000L)
Sinotruk Howo Asphalt Distrbutor Truck (4,000L~5,000L)
Sinotruk Howo Asphalt Distrbutor Truck (4,000L~5,000L)
Sinotruk Howo Asphalt Distrbutor Truck (4,000L~5,000L)
Sinotruk Howo Asphalt Distrbutor Truck (4,000L~5,000L)
Sinotruk Howo Asphalt Distrbutor Truck (4,000L~5,000L)
Sinotruk Howo Asphalt Distrbutor Truck (4,000L~5,000L)
